Custom Positive CTCP Single Layer Plates

Home / Products / Positive CTCP Plate(Single Layer)

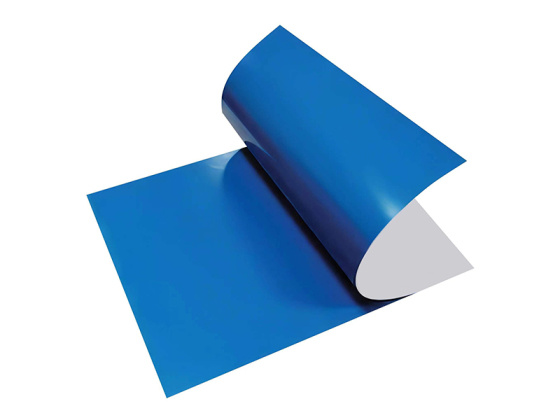

Positive CTCP Plate(Single Layer)

Positive CTCP Plate(Single Layer)

Lecai CTCP Plates are used for high-end commercial color printing and newspaper printing. The unique manufacturing technology and good quality raw materials supply high photosensitive, good halftone dot reproduction, and good stability.

We are determined to create a "high quality, good service" brand image of "Le Cai" in the hearts of domestic and foreign customers.

Download template

Product Details

Application
Lecai CTCP Plates are used for high-end commercial color printing and newspaper printing.

The unique manufacturing technology and good quality raw materials supply high photosensitive, good halftone dot reproduction, and good stability.

Characteristic
1. High-quality aluminum and photosensitive coating.

2. Multi-layer composite grain structure.

3. Good resolution and precise halftone dot reproduction.

4. Good development tolerance and convenient operation.

General Information
Plate Type Positive CTCP Plate
Application High grade commercial and newspaper printing
Substrate Electro chemically Grained and Cathodic lithographic Aluminum
Aluminum alloy Standard 1050 Alloy
Coating IR sensitive,positive acting
Gauge 0.15,0.20,0.25,0.30,0.40(mm)
Maximum short grain width 1380 mm
Length of Run Unbaked:80000 to 100000 impressions
Baked:Over 100000 impressions



Exposing
Plate setters Luscher,Basysprint,Cron,Lecai
Exposure energy 50 -70 mJ/cm²
Spectral Sensitivity 400-430 nm -UV Laser
Resolution 2 -99% at LPl 200
Photosensitive Wave Length 405 nm
Coatinc Blue



Developing
Processor All the kind Brands.
Developer Kodak Gold Star or our Lecaideveloper
Processing temperature 23℃+/-2℃
Developing time 20-30 sec
Dynamic Supplement 80 -120 ml/m²



Storage and handling
Safelight Handle under yellow safelight (UV free)
Shelf Life 12 months under recommended storage conditions

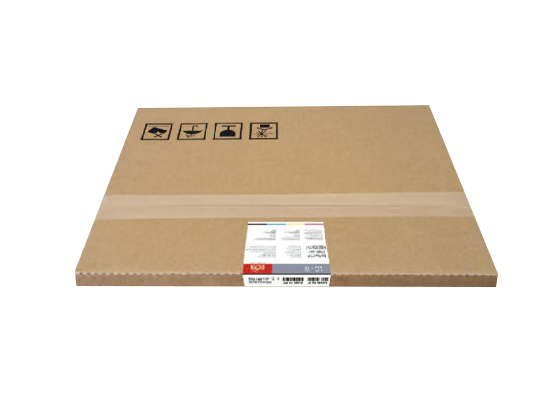

Packaging Available in all standard formats, including bulk packaging options such as APL packaging
Storage and handling stored in a cool and dry environment, away from excessive cold, heat, and humidity.

Get in Touch

Your name

Your e-mail*

Your message*

{$config.cms_name} submit
Jiangsu Lecai Printing Materials Co., Ltd.

About us

Jiangsu Lecai Printing Materials Co., Ltd. and Jiangsu Yuanrui Digital Technology Co., Ltd. are both manufacturing enterprises specializing in the production of printing plates, with an annual output of over 40 million square meters. We are China Wholesale OEM/ODM Positive CTCP Single Layer Plates Manufacturers and Custom Positive CTCP Single Layer Plates Suppliers, Factory, The rich experience accumulated in the printing production of the group over the past fifteen years and the unique process technology explored from practice have also ensured that our products have the advantages of high quality and high level, as well as fast photosensitivity, high resolution, large plate capacity, good ink balance, and high printing resistance. There are over 20 printing plate manufacturers worldwide, including Kodak, Agfa, Fuji from Japan, and Huaguang from China. Our Lecai ranking is approximately sixth in the world and third in China. In order to adapt to the increasingly severe environmental issues, LeCai successfully developed the process-less CTP plate in 2015, which filled the world's gap. While taking root in China, we also look at the world's larger and broader international market, mainly exporting to more than 50 countries, such as Germany, Spain, Italy, Brazil, Türkiye, Russia, and South Korea. We also actively seek partners at home and abroad.
View More

Positive CTCP Plate(Single Layer) Industry knowledge

Unlocking the Secrets of Superior Quality: Why Choose Jiangsu Lecai's Positive-Working CTCP Plates for High-End Printing?

Positive CTCP Plate (Computer To Conventional Plate, the abbreviation of computer direct plate making to traditional printing plate), as an important part of modern printing technology, is leading the new trend of the industry with its characteristics of high efficiency, accuracy and environmental protection. Especially in the fields of high-end commercial color printing and newspaper printing, a positive CTCP plate with excellent performance is an indispensable key element. Jiangsu Lecai Printing Materials Co., Ltd., as a leader in this field, has contributed high-quality positive CTCP plate products to the global printing market with its unique manufacturing process, high-quality raw materials and profound industry experience, and has won a wide range of praise.

The emergence of positive CTCP plate technology is an important milestone in the process of printing digitization. It abandons the cumbersome film exposure, development, fixation and other steps in the traditional plate making process, and directly controls the laser or electron beam to expose the image on the surface of the plate through a computer, achieving seamless connection from design to printing plate. This process not only greatly shortens the plate-making cycle and improves production efficiency, but also significantly reduces plate-making costs and reduces environmental pollution. It is a vivid practice of the green printing concept.

In the positive CTCP plate market, Jiangsu Lecai Printing Materials Co., Ltd. stands out for its excellent product quality and innovation capabilities. The company focuses on the R&D and production of single-layer positive CTCP plates. Relying on the group's fifteen years of profound accumulation in the printing industry, it continues to improve its manufacturing processes and selects world-class raw materials to ensure that each plate can achieve optimal performance.

One of the most notable features of the Lecaiyangtu CTCP version is its high sensitivity. This means that under the same exposure conditions, the plate can respond more quickly to laser or electron beam irradiation, forming clearer and more detailed graphic information. At the same time, the excellent dot reproducibility ensures that the images on the printed matter are rich in details and distinct in layers. Whether it is delicate gradients or complex patterns, they can be accurately reproduced, meeting the high image quality requirements of high-end commercial printing.

Stability is one of the important criteria for measuring the quality of printing plates. Through special surface treatment technology and scientific formula design, Lecaiyangtu CTCP plate effectively improves the weather resistance and chemical stability of the plate. It can remain stable even in long-term storage or complex and changeable printing environments. printing effect. In addition, its strong printing durability provides a strong guarantee for large-scale and continuous newspaper printing, ensuring that the printing quality of each newspaper is consistent.

As a responsible enterprise, Jiangsu Lecai Printing Materials Co., Ltd. is well aware of the importance of environmental protection. In the production process of Yangtu CTCP plates, the company actively uses environmentally friendly materials and low-energy consumption processes to reduce waste water and waste gas emissions, and strives to achieve green production. At the same time, by improving the utilization rate of the plate and extending its service life, it further reduces the waste of resources in the printing process and contributes to the sustainable development of the industry.

The positive CTCP plate (single layer) produced by Jiangsu Lecai Printing Materials Co., Ltd. has demonstrated its performance in the fields of high-end commercial color printing and newspaper printing with its high sensitivity, precise dot restoration, excellent stability and printing durability, and environmentally friendly production concept. It has strong competitiveness and broad application prospects. With the continuous advancement of digital printing technology and the continued development of the global printing market, we have reason to believe that Lecai will continue to lead the industry trend and bring more innovative, efficient, and environmentally friendly printing solutions to global printing companies.
