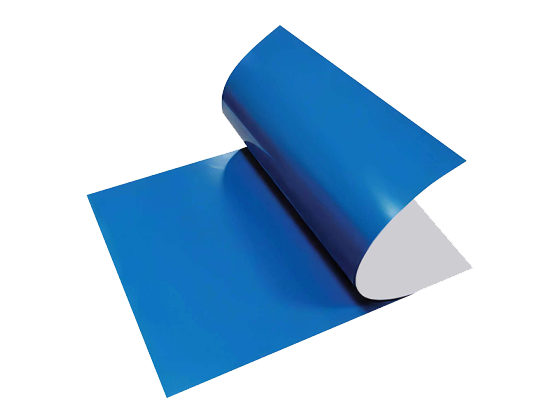

Positive CTCP Plate(Double Layer)

Positive CTCP Plate(Double Layer)

Lecai Positive CTCP plates are made for UV ink. It is compatible with ordinary ink. When using ordinary ink, the run-length of plates will be doubled. It is use for high-end commercial color printing and newspaper printing.

We are determined to create a "high quality, good service" brand image of "Le Cai" in the hearts of domestic and foreign customers.

Download template

Product Details

Application
Lecai Thermal-CTCPplates are made of ink. It is compatible with ordinary ink. When using ordinary ink, the run-length of plates will be doubled. It is used for high-end commercial color printing and newspaper printing.

Characteristic
1. ink resistance
2. High-quality aluminum, composite grain, and long run length.
3. High resolution and precise halftone dot reproduction.
4. High development tolerance and convenient operation.

General Information
Plate Type Positive CTCP Plate (Double Layer)
Application High quality commercial and newspaper printing
Substrate Electro chemically Grained and Cathodic lithographic Aluminum
Aluminum alloy Standard 1050 Alloy
Coating IR sensitive,positive acting
Gauge 0.15,0.20,0.25,0.30,0.40(mm)
Maximum short grain width 1380 mm
Length of Run 100,000 to 150,000 impressions



Exposing
Plate setters Luscher,Basysprint,Cron,Lecai
Exposure energy 50 -70 mJ/cm²
Spectral Sensitivity 400-430 nm -UV Laser
Resolution 2 -99%at LPl 200
FM capability 405 nm
Image color Blue



Developing
Processor All the kind Brands.
Developer Kodak Gold Star or our Lecaideveloper
Processing temperature 23℃+/-2℃
Developing time 20-30 sec
Dynamic Supplement 80 -120 ml/m²



Storage and handling
Safelight Handle under yellow safelight (UV free)
Shelf Life 12 months under recommended storage conditions

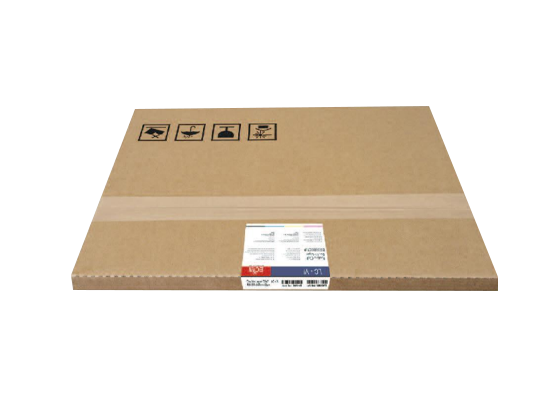

Packaging Available in all standard formats,including bulk packaging options such as APL packaging
Storage and handling stored in a cool and dry environment,away from excessive cold, heat and humidity.

Get in Touch

Your name

Your e-mail*

Your message*

{$config.cms_name} submit
Jiangsu Lecai Printing Materials Co., Ltd.

About us

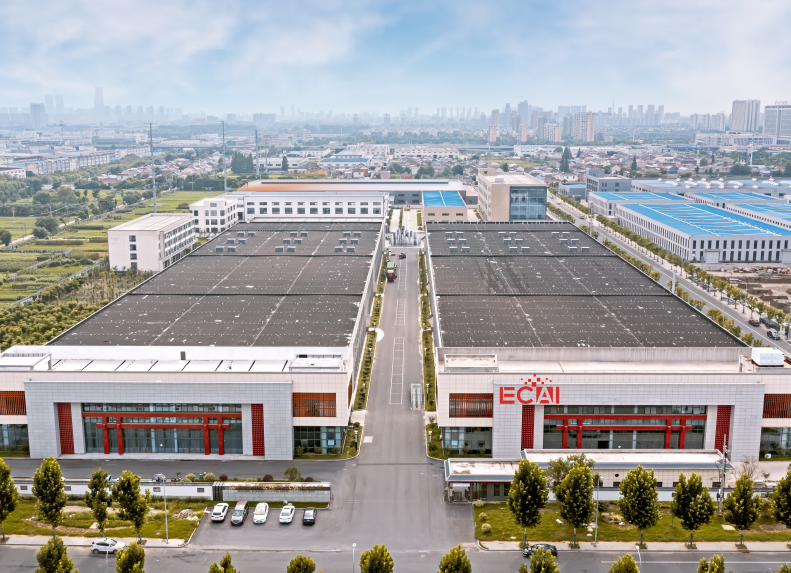

Jiangsu Lecai Printing Materials Co., Ltd. and Jiangsu Yuanrui Digital Technology Co., Ltd. are both manufacturing enterprises specializing in the production of printing plates, with an annual output of over 40 million square meters. We are China Wholesale OEM/ODM Positive CTCP Double Layer Plates Manufacturers and Custom Positive CTCP Double Layer Plates Suppliers, Factory, The rich experience accumulated in the printing production of the group over the past fifteen years and the unique process technology explored from practice have also ensured that our products have the advantages of high quality and high level, as well as fast photosensitivity, high resolution, large plate capacity, good ink balance, and high printing resistance. There are over 20 printing plate manufacturers worldwide, including Kodak, Agfa, Fuji from Japan, and Huaguang from China. Our Lecai ranking is approximately sixth in the world and third in China. In order to adapt to the increasingly severe environmental issues, LeCai successfully developed the process-less CTP plate in 2015, which filled the world's gap. While taking root in China, we also look at the world's larger and broader international market, mainly exporting to more than 50 countries, such as Germany, Spain, Italy, Brazil, Türkiye, Russia, and South Korea. We also actively seek partners at home and abroad.
View More

Positive CTCP Plate(Double Layer) Industry knowledge

Unlocking the Future of Printing: How Does LeCai's Double-Layer Positive CTCP Plate Revolutionize the Industry?

Every technological innovation has a profound impact on product quality and market competitiveness. As a leader in this field, Jiangsu Lecai Printing Materials Co., Ltd. and Jiangsu Yuanrui Digital Technology Co., Ltd. have jointly launched Positive CTCP Plate(Double Layer) tailored for high-end commercial color printing and newspaper printing. With its excellent performance and wide application compatibility, it has once again set a new benchmark in the industry.

The launch of Lecai positive CTCP plates (double-layer) is a major upgrade of traditional printing plates. CTCP (Computer-To-Conventional Plate) technology, that is, computer direct platemaking technology, directly transfers image information to the plate in a digital way, eliminating the intermediate links and greatly improving the efficiency and accuracy of platemaking. The double-layer structure design further enhances the durability and printing stability of the plate, providing strong technical support for the high-end printing market.

A major highlight of Lecai positive CTCP plates (double-layer) is its wide compatibility with UV inks and ordinary inks. UV inks occupy an important position in high-end packaging, labels and other fields with their fast curing speed, bright colors, wear resistance and weather resistance. While ensuring the printing effect of UV ink, Lecai plates can also perfectly adapt to ordinary inks, allowing printing companies to switch freely between different needs, greatly improving production flexibility and economic benefits. Especially when using ordinary inks, the printing volume of the plates can be significantly doubled, which is undoubtedly a great boon for fields such as newspaper printing that pursue cost-effectiveness.

Jiangsu Lecai and Yuanrui Digital have combined rich practical experience with cutting-edge technology with their 15 years of deep accumulation in the printing industry to create this high-quality double-layer CTCP plate. Its fast photosensitivity can efficiently complete platemaking tasks in a short time, meeting the modern printing industry's pursuit of speed; high resolution ensures accurate reproduction of image details, whether it is delicate text or complex patterns, it can be perfectly presented. In addition, the characteristics of large plate capacity, good water-ink balance, and strong printing resistance enable each print to maintain stable color and clarity, effectively extending the service life of the plate and reducing production costs.

Today, when green printing is advocated, Lecai Yangtu CTCP plates (double layers) also actively respond to environmental protection calls. By optimizing the production process and material selection, the use and emission of harmful substances are reduced, which meets international environmental protection standards. At the same time, the recyclability and reusability of the plate also reflects the company's responsibility for the environment and contributes to the sustainable development of the printing industry.

Lecai and Yuanrui Digital are well aware that high-quality products are only half of the success, and high-quality services are the key to winning the market. Therefore, the company always adheres to the brand concept of "high quality and good service" and is committed to providing customers with a full range of personalized service experience. From pre-sales consultation, technical support to after-sales service, every link strives to be professional, efficient and considerate to ensure that customers have no worries during use.

The launch of Lecai Yangtu CTCP plate (double layer) is not only a display of Lecai and Yuanrui Digital's technological innovation strength, but also an accurate grasp of the future development trend of the printing industry. In this ever-changing era, Lecai will continue to uphold the spirit of innovation, continuously launch more high-quality and high-performance printing materials, and work with customers to create a bright future for the printing industry. We believe that through unremitting efforts and pursuit, Lecai will be able to establish a solid brand image of "high quality, good service" in the hearts of domestic and foreign customers and become a leader in the field of printing materials.
